Description

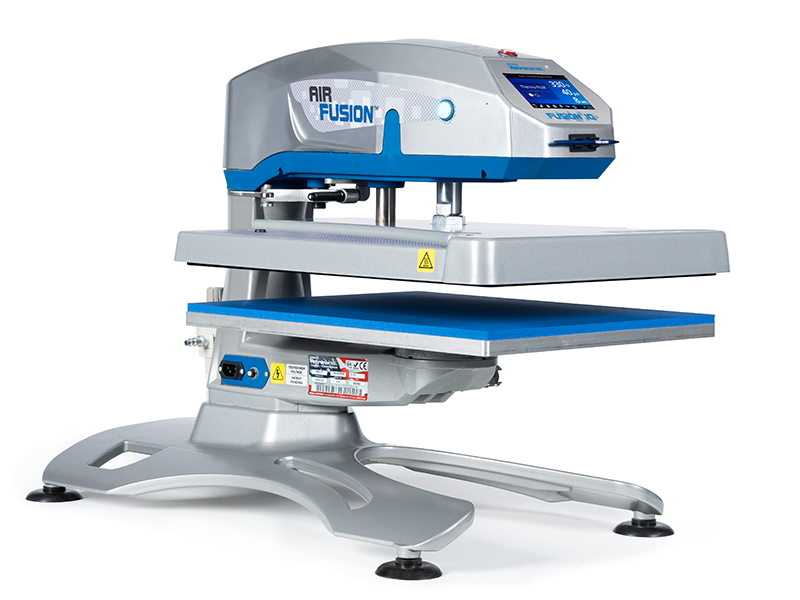

The Hotronix Air Fusion IQ is the flagship air-powered heat press in the Hotronix lineup — a full floor-standing swing/draw 16"x20" press with touch screen control, air-assisted operation, Threadability™, and IQ Portal connectivity. Air-powered operation eliminates the manual force required to lower and lock the press, significantly reducing operator fatigue in high-volume production environments. The swing/draw design allows the lower platen to be positioned away from the press body for easier garment loading.
- Platen size: 16" x 20"
- Operation: Air-powered swing/draw — requires external air compressor
- Air requirements: Minimum 1 HP compressor, 8-gallon hold tank, 120 PSI, uses 3.8 CFM
- Controls: Touch screen — stored application settings, self-diagnostics, IQ Portal
- Features: Threadability™, auto on/off, Quick Change lower platens (optional), multiple time settings, adjustable-height stand
- Electrical: 120V / 15 amps / 1,800W or 240V / 7.5 amps / 1,800W — dedicated circuit required
- Actual weight: 152 lbs / Ship weight: 245 lbs
- Dimensions: 40"x32"x57" actual (stand at max height)
- Made in the USA
- Certifications: UL standards via SGS testing, CE/RoHS approved
- Warranty: Heating element lifetime, premier warranty
Pricelist
| Min Quantity | Price | |
|---|---|---|
| 1+ | $ 24.00 | |
