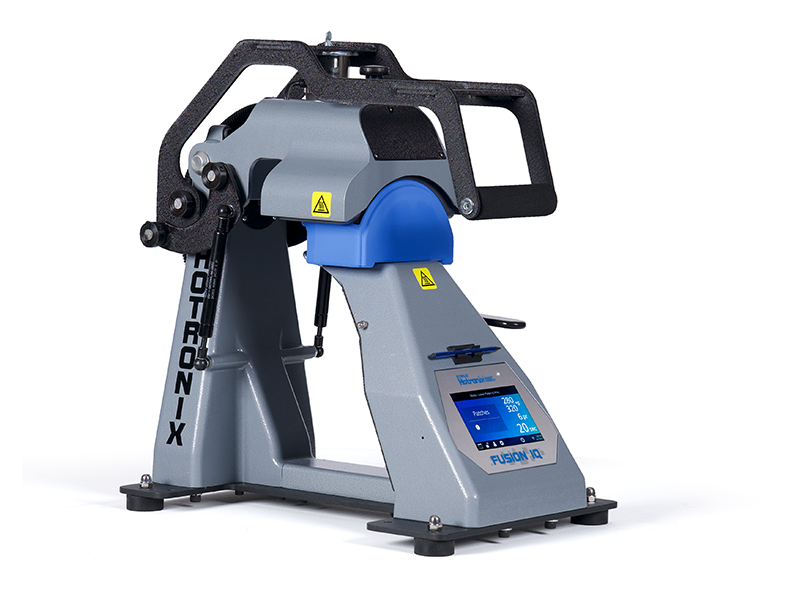

Hotronix® 360 IQ® Hat Heat Press

The Hotronix 360 IQ sets a new standard for hat heat presses — a 360° print area lets operators print the front, back, and sides of a cap without removing it from the press. The one-size-fits-all molded platen transitions between cap sizes without platen changes, reducing creasing and scorching on structured, unstructured, trucker, and low-profile styles. Independently controlled upper and lower heated platens allow heat transfer application on the cap body and patch or emblem application on the lower platen in the same workflow. One-hand operation and automatic opening reduce operator fatigue and over-application risk in production environments.

• Print area: 360° — front, back, and sides without removing or repositioning cap
• Platen: One-size-fits-all molded cap platen — no platen changes between cap sizes
• Platens: Independently controlled heated upper and lower platens
• Lower platen: Heated — for patch and emblem application
• Opening: Automatic
• Operation: One-hand operation
• Controls: IQ Touch Screen — digital time, temperature, and digital pressure readout, programmable presets, IQ Portal cloud tracking
• Heating: Cast-in tubular heating element
• Finish: Powder coated
• Electrical: 120V / 10 amps / 800W or 240V / 5 amps / 800W — dedicated circuit required
• Actual dimensions (closed): 18"x12"x20"
• Actual dimensions (open): 18"x12"x32"
• Actual weight: 44 lbs / Ship weight: 50 lbs
• Ship dimensions: 26"x15"x25"
• Certifications: Certified by SGS to UL standards, CE/RoHS approved
• Made in the USA
• Warranty: Heating element lifetime / Frame 5 years / Circuit board 2 years / Other components 1 year
