Description
This is the widest roll of ORAFOL's ORALITE 5600 we carry. It's Fleet Engineer Grade reflective film built for vehicle lettering, markings and decoration. ORALITE is ORAFOL's reflective line, from the maker of Oracal. The 5 mil cast PVC film meets ASTM D4956 Type I, Class 1 and is made for cutting plotters.
Specifications
- Manufacturer: ORAFOL (ORALITE reflective line)
- Product: ORALITE 5600
- Grade: Fleet Engineer Grade
- Classification: ASTM D4956 Type I, Class 1
- Film: 5 mil cast PVC, self-adhesive
- Width: 48 inches
- Liner: Standard (non-RapidAir)
- Retroreflection: Glass bead
- Resistance: Corrosion and solvent resistant
Applications & Uses

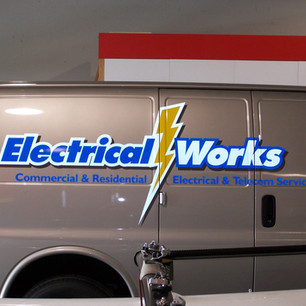

Wide cut graphics on trucks and trailers go together with fewer seams on a 48" roll. For full-width cutting, the Graphtec CE8000-130 takes the whole roll.
The film's flexibility over corrugations and rivets matters most at this size, where one graphic can span several ribs or rivet lines. If you'd rather install large panels dry, 5600RA 48" adds RapidAir adhesive.
5600 or 5600RA?
5600 is Fleet Engineer Grade (Type I, Class 1) on a standard liner for cut lettering and markings. 5600RA is rated Type I, Class 3 and uses RapidAir for large wraps, trailers and rivet-heavy panels. For general fleet graphics with RapidAir, see 5650RA 48".
| Product | ASTM D4956 | RapidAir | Best For |
|---|---|---|---|
| ORALITE 5500 (Engineer Grade) | Type I | No | Traffic, parking and directional signs |
| ORALITE 5600 (Fleet Engineer Grade) | Type I, Class 1 | No | Fleet lettering and markings |
| ORALITE 5600RA | Type I, Class 3 | Yes | Large wraps, trailers, rivets |
| ORALITE 5650RA (Fleet Engineer Grade) | Type I, Class 1 | Yes | General fleet graphics and lettering |
Ordering & Shipping
Pricing shown above. Choose your color and length from the options on this page. Ships nationwide, with local pickup available in Omaha, NE. Free shipping on orders over $149. Call 1-800-999-3160 for multi-roll production orders.
Also available: Oracal 5600 30" · 5600RA 48" White · Oracal 5650RA 48" · Oracal 5500 48"
Pricelist
| Min Quantity | Price | |
|---|---|---|
| 1+ | $ 24.00 | |
Alternative Products
Specifications
| Length | 1yd (3ft) or 10yd or 25yd or 50yd |
| Color-5600 | 091-Gold or 010-White or 213-Lemon or 020-Yellow or 035-Orange or 030-Red or 364-Ruby or 050-Blue or 084-Sky Blue or 060-Green or 070-Black |
| Brand | Oracal |
| Width | 48 inch |
