Description
ORAFOL developed ORALITE 5600 for vehicle graphics: reflective lettering, markings and decorations cut on a plotter. The film is 5 mil cast PVC, self-adhesive and weather resistant, and it meets ASTM D4956 Type I, Class 1. ORALITE is ORAFOL's reflective line, the same company that makes Oracal vinyl.
Specifications
- Manufacturer: ORAFOL (ORALITE reflective line)
- Product: ORALITE 5600
- Grade: Fleet Engineer Grade
- Classification: ASTM D4956 Type I, Class 1
- Film: 5 mil cast PVC, self-adhesive
- Width: 24 inches
- Liner: Standard (non-RapidAir)
- Retroreflection: Glass bead
- Resistance: Corrosion and solvent resistant
Applications & Uses

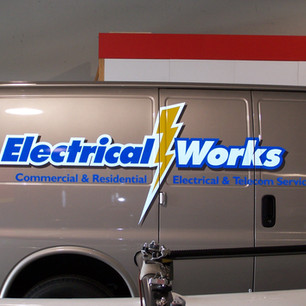

The 24" roll is the working width most fleet shops keep stocked for door lettering, unit numbers, company logos and reflective striping. It runs on 24" cutters like the Graphtec CE8000-60.
Because the film is flexible enough to go over corrugations and rivets, it works on ribbed box truck sides and riveted trailer doors as well as smooth panels. Use a high-tack transfer tape such as Oratape HT55 and a felt-wrapped ORAFOL squeegee to protect the reflective face.
5600 or 5600RA?
5600 is Fleet Engineer Grade (Type I, Class 1) with a standard liner, well suited to cut lettering and markings. 5600RA 24" is rated Type I, Class 3 and uses RapidAir adhesive for large wraps, trailers and rivet-heavy panels. For general fleet graphics with RapidAir, see 5650RA 24".
| Product | ASTM D4956 | RapidAir | Best For |
|---|---|---|---|
| ORALITE 5500 (Engineer Grade) | Type I | No | Traffic, parking and directional signs |
| ORALITE 5600 (Fleet Engineer Grade) | Type I, Class 1 | No | Fleet lettering and markings |
| ORALITE 5600RA | Type I, Class 3 | Yes | Large wraps, trailers, rivets |
| ORALITE 5650RA (Fleet Engineer Grade) | Type I, Class 1 | Yes | General fleet graphics and lettering |
Ordering & Shipping
Pricing shown above. Choose your color and length from the options on this page. Ships nationwide, with local pickup available in Omaha, NE. Free shipping on orders over $149. Call 1-800-999-3160 with questions.
Also available: Oracal 5600 15" Punched · Oracal 5600 30" · Oracal 5600 48" · Oracal 5500 24"
Pricelist
| Min Quantity | Price | |
|---|---|---|
| 1+ | $ 24.00 | |
Alternative Products
Specifications
| Length | 1yd (3ft) or 10yd or 50yd |
| Color-5600 | 091-Gold or 010-White or 213-Lemon or 020-Yellow or 035-Orange or 030-Red or 364-Ruby or 050-Blue or 084-Sky Blue or 060-Green or 070-Black |
| Brand | Oracal |
| Width | 24 inch |
