Oracal 651 48" Vinyl Rolls: Wide-Format Intermediate Calendered Sign Vinyl by ORAFOL
Oracal 651 in 48" width is the roll for graphics too wide for a 24" or 30" roll: large wall graphics, wide window graphics, full-panel lettering and big outdoor signs. One 48" piece covers the job without a seam running through the design.
Central Sign Supplies is a family-owned ORAFOL Premier Distributor in Omaha since 1951. We carry 48" Oracal 651 in 80 color and finish options (62 colors, 18 of them also in matte), in 1, 10 and 50 yard lengths. No wholesale account required.
Why 48" Width
The 48" roll is the widest Oracal 651 we stock. Use it when a graphic would otherwise need two pieces seamed together. It needs a cutter that accepts media wider than 48", such as the Graphtec FC9000-140 (54") or FC9000-160 (64").
For narrower work, see the 30" roll, 24" roll, 15" punched roll and 12" roll.
Specifications
- Film: intermediate calendered PVC, 2.5 mil / 70 micron (without liner and adhesive)
- Adhesive: clear, solvent-based, permanent
- Width: 48" (1,219 mm)
- Lengths: 1 yd, 10 yd, 50 yd
- Finish: gloss in all colors; matte in 18 colors, including 070M Black and 010M White
- Outdoor durability (vertical exposure): up to 6 years for standard colors, 4 years for metallics, 3 years for 086 Brilliant Blue
- Minimum application temperature: 46°F
- Temperature range once applied to aluminum: -40°F to 176°F
- Full specifications: Oracal 651 Technical Data Sheet, ORAFOL Americas
Applications
Oracal 651 48" is the right film for:
- large wall graphics and murals in solid colors
- wide storefront and window graphics

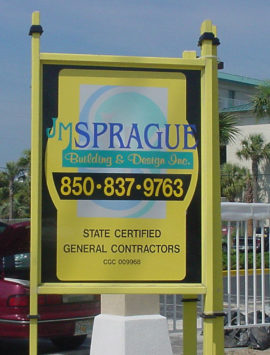

- full-panel lettering on large outdoor signs
- fleet lettering on box trucks and trailers (flat panels)
It applies to flat and slightly curved surfaces, including aluminum sign sheets, ACM panels, glass, painted walls and vehicle panels. Transfer with Perfectear Plus transfer tape and apply with a 3M PA-1 squeegee.
Oracal 651 vs 631 vs 751
- Oracal 651: permanent adhesive, up to 6 years outdoors. The choice for sign lettering, decals and vehicle graphics on flat surfaces.
- Oracal 631: removable adhesive, rated for indoor and short-term outdoor use (3 years). Best for wall graphics, displays and temporary signage.
- Oracal 751: 2 mil cast film, rated up to 8 years in black and white and 7 years in colors. Better for curves, rivets and long-term vehicle graphics.
For a side-by-side breakdown, see our Oracal 651 vs 751 vs 951 comparison.
Ordering, Pickup and Shipping
Order online with no wholesale account. Pricing shown above. Available in 10 yd and 50 yd rolls; call 800-999-3160 to confirm 1 yd availability in your color. Free shipping on orders over $149. Pickup is available at 4222 D Street, Omaha, NE 68107. For multiple 50 yd rolls, contact us for quantity pricing.
Frequently Asked Questions
When should I use 48-inch Oracal 651 instead of 24-inch?
Use 48-inch when a graphic is wider than a 24-inch or 30-inch roll can cover in one piece, such as large wall graphics, wide window graphics and full-panel lettering. One wide piece avoids a seam line through the design.
What cutter do I need for 48-inch vinyl?
You need a roll-fed vinyl cutter that accepts media wider than 48 inches, such as the Graphtec FC9000-140 (54-inch) or FC9000-160 (64-inch).
Is Central Sign Supplies an authorized ORAFOL distributor?
Yes. Central Sign Supplies is listed as an ORAFOL Premier Distributor in ORAFOL Americas' distributor directory.
How long does Oracal 651 last outdoors?
Up to 6 years for standard colors, 4 years for metallics and 3 years for 086 Brilliant Blue, on a clean vertical surface.
What is the difference between Oracal 651 and 751?
651 is a 2.5 mil calendered film rated up to 6 years, best for flat surfaces and general sign work. 751 is a 2 mil cast film rated up to 8 years in black and white, better for curves and long-term vehicle graphics.
What lengths does 48-inch Oracal 651 come in?
1 yard, 10 yard and 50 yard lengths. Call 800-999-3160 to confirm 1 yard availability in your color.
Also available: 12" width · 15" punched · 24" width · 30" width · 12x24 sheets · All Oracal 651
Pricelist
| Min Quantity | Price | |
|---|---|---|
| 1+ | $ 24.00 | |
Alternative Products
Specifications
| Length | 1yd (3ft) or 10yd or 50yd |
| Color-651 | 000-Transparent or 010-White or 010M-Matte White or 020-Golden Yellow or 019-Signal yellow or 021-Yellow or 022-Light Yellow or 022M-Matte Light Yellow or 025-Brimstone Yellow or 026-Purple Red or 312-Burgundy or 312M-Matte Burgundy or 030-Dark Red or 031-Red or 031M-Matte Red or 032-Light Red or 034-Orange or 034M-Matte Orange or 047-Orange Red or 036-Light Orange or 035-Pastel Orange or 341-Coral or 404-Purple or 040-Violet or 040M-Matte Violet or 043-Lavender or 042-Lilac or 041-Pink or 041M-Matte Pink or 045-Soft Pink or 045M-Matte Soft Pink or 562-Deep Sea Blue or 518-Steel Blue or 050-Dark Blue or 050M-Matte Dark Blue or 065-Cobalt Blue or 049-King Blue or 086-Brillant Blue or 067-Blue or 057-Traffic Blue or 051-Gentian Blue or 098-Gentian or 052-Azure Blue or 084-Sky Blue or 084M-Matte Sky Blue or 053-Light Blue or 056-Ice Blue or 066-Turquoise Blue or 054-Turquoise or 054M-Matte Turquoise or 055-Mint or 060-Dark Green or 613-Forest Green or 061-Green or 061M-Matte Green or 068-Grass Green or 062-Light Green or 064-Yellow Green or 063-Lime Tree Green or 080-Brown or 080M-Matte Brown or 083-Nut Brown or 824-Imitation Gold or 081-Light Brown or 082-Beige or 023-Cream or 070-Black or 070M-Matte Black or 073-Dark Grey or 073M-Matte Dark Grey or 071-Grey or 071M-Matte Grey or 076-Telegrey or 074-Middle grey or 072-Light Grey or 090-Silver Grey Metallic or 090M-Matte Silver Grey Metallic or 091-Gold Metallic or 091M-Matte Gold Metallic or 092-Copper Metallic |
| Brand | Oracal |
| Width | 48 inch |
